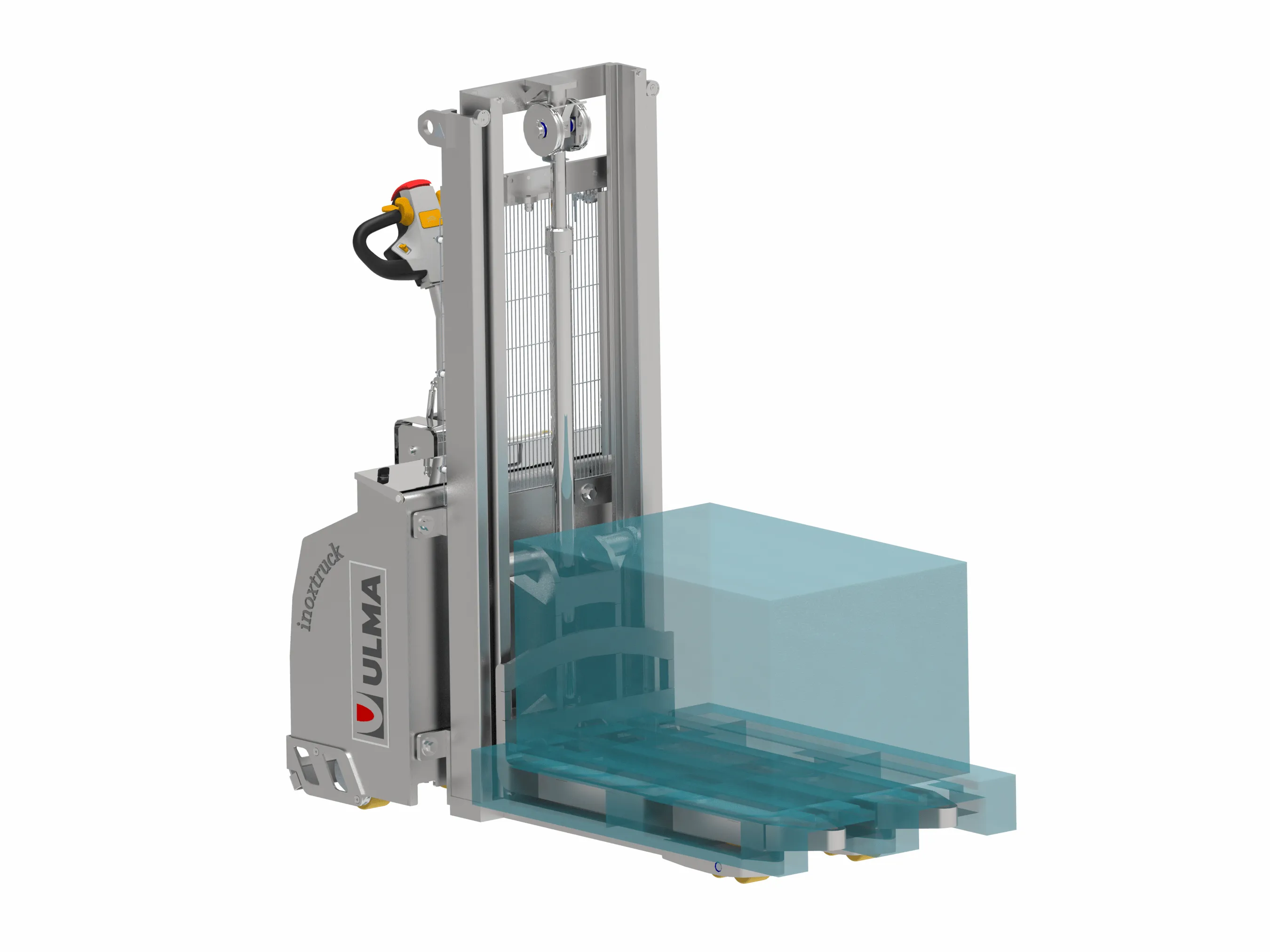

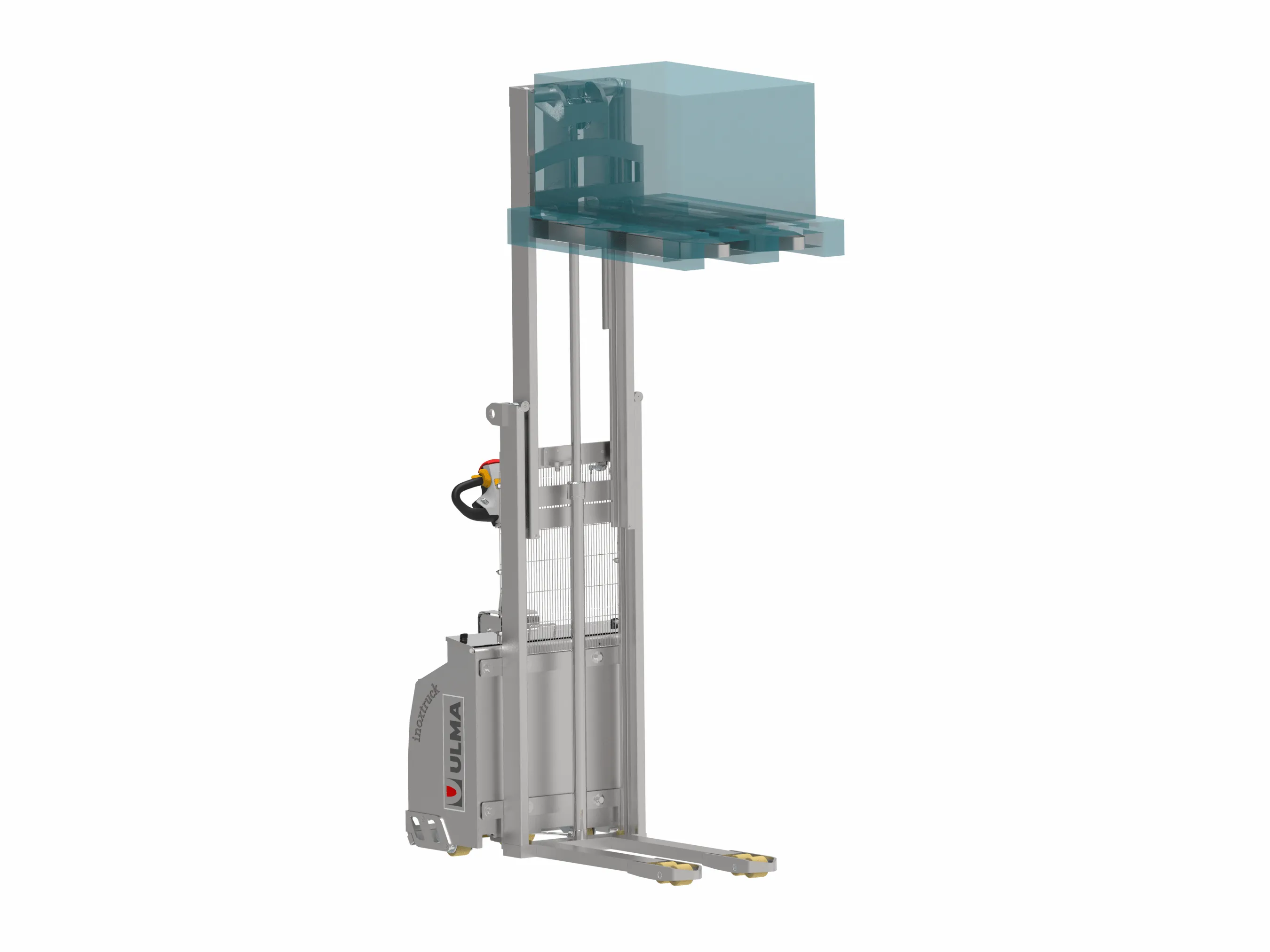

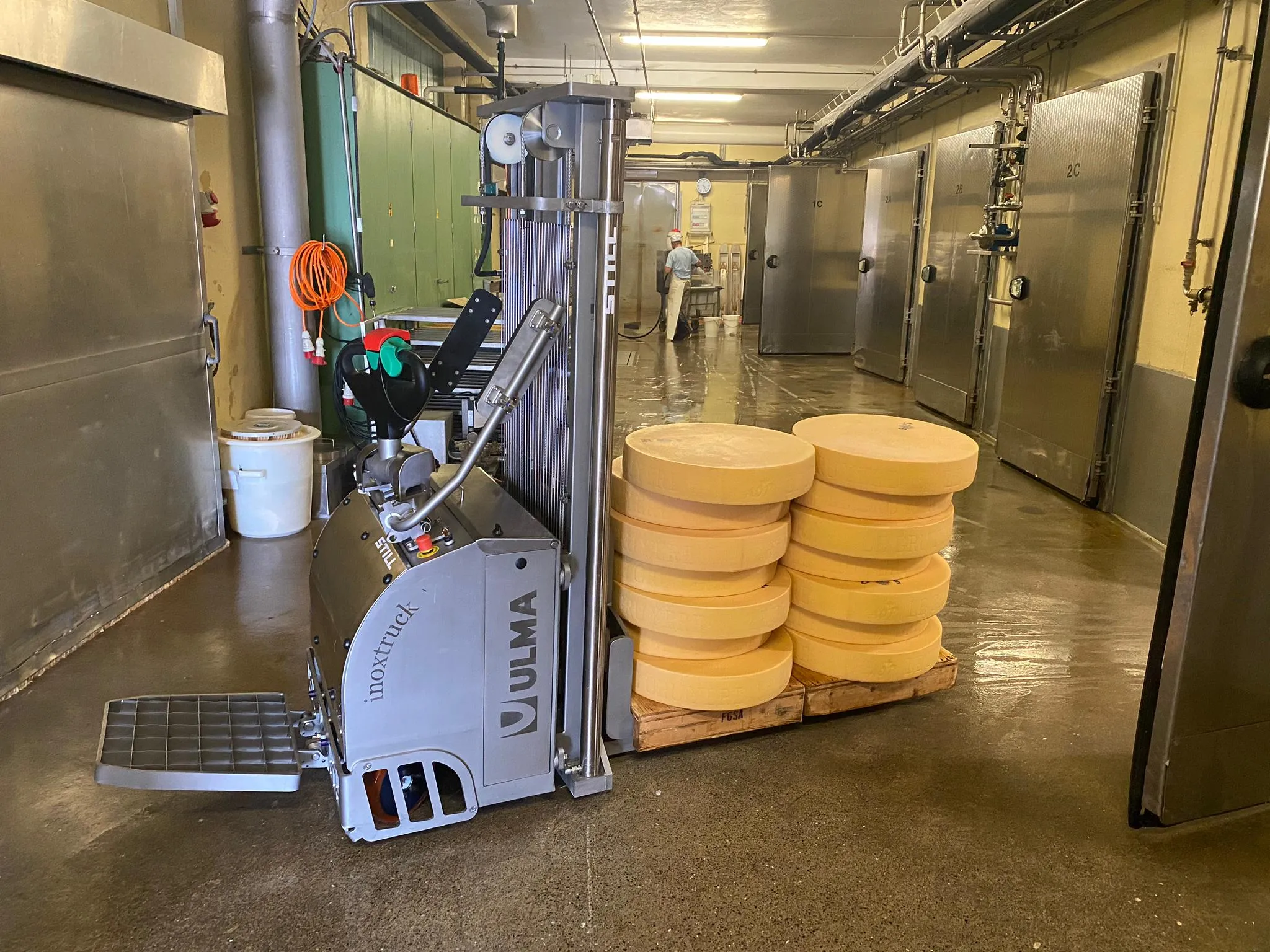

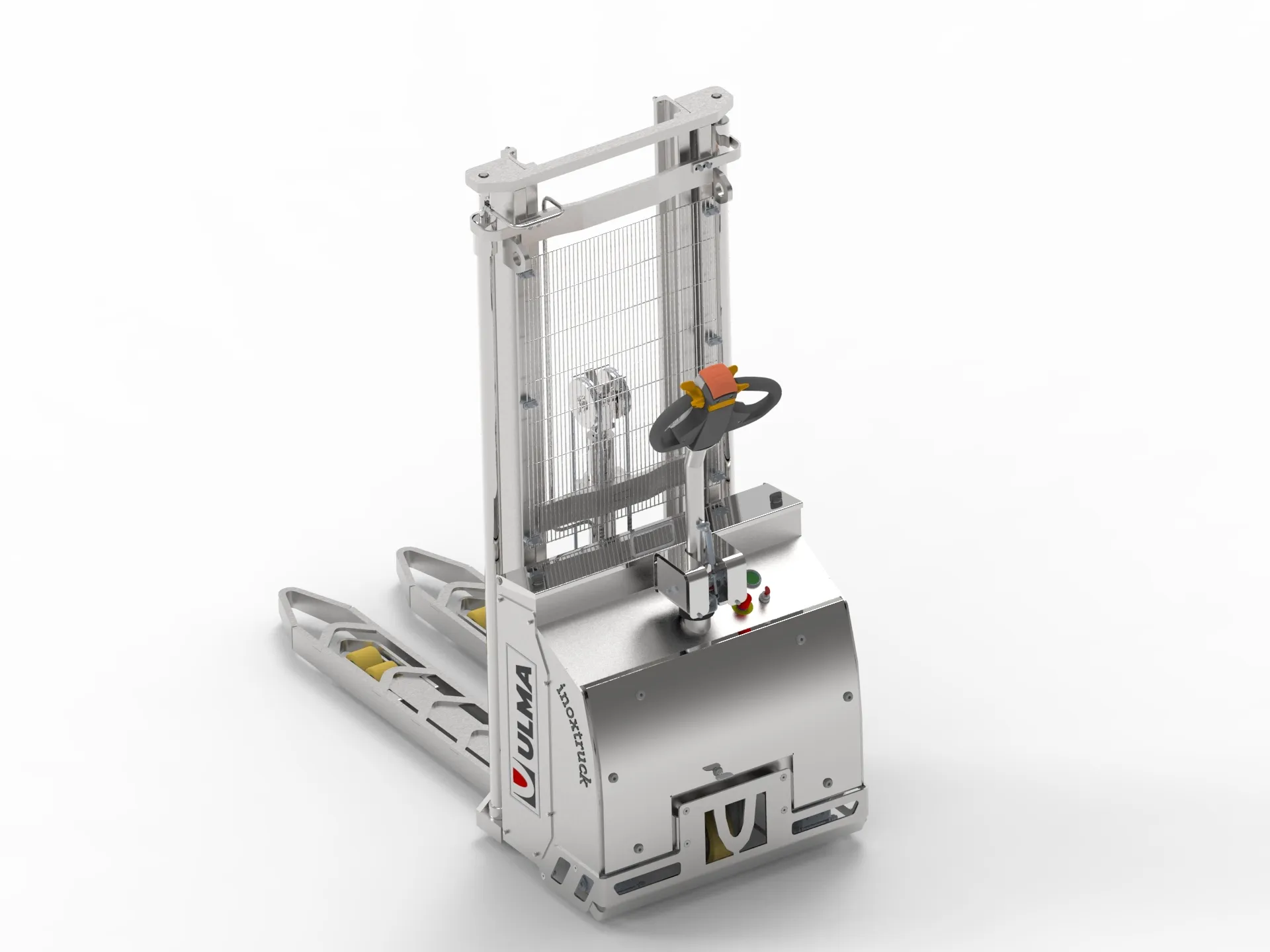

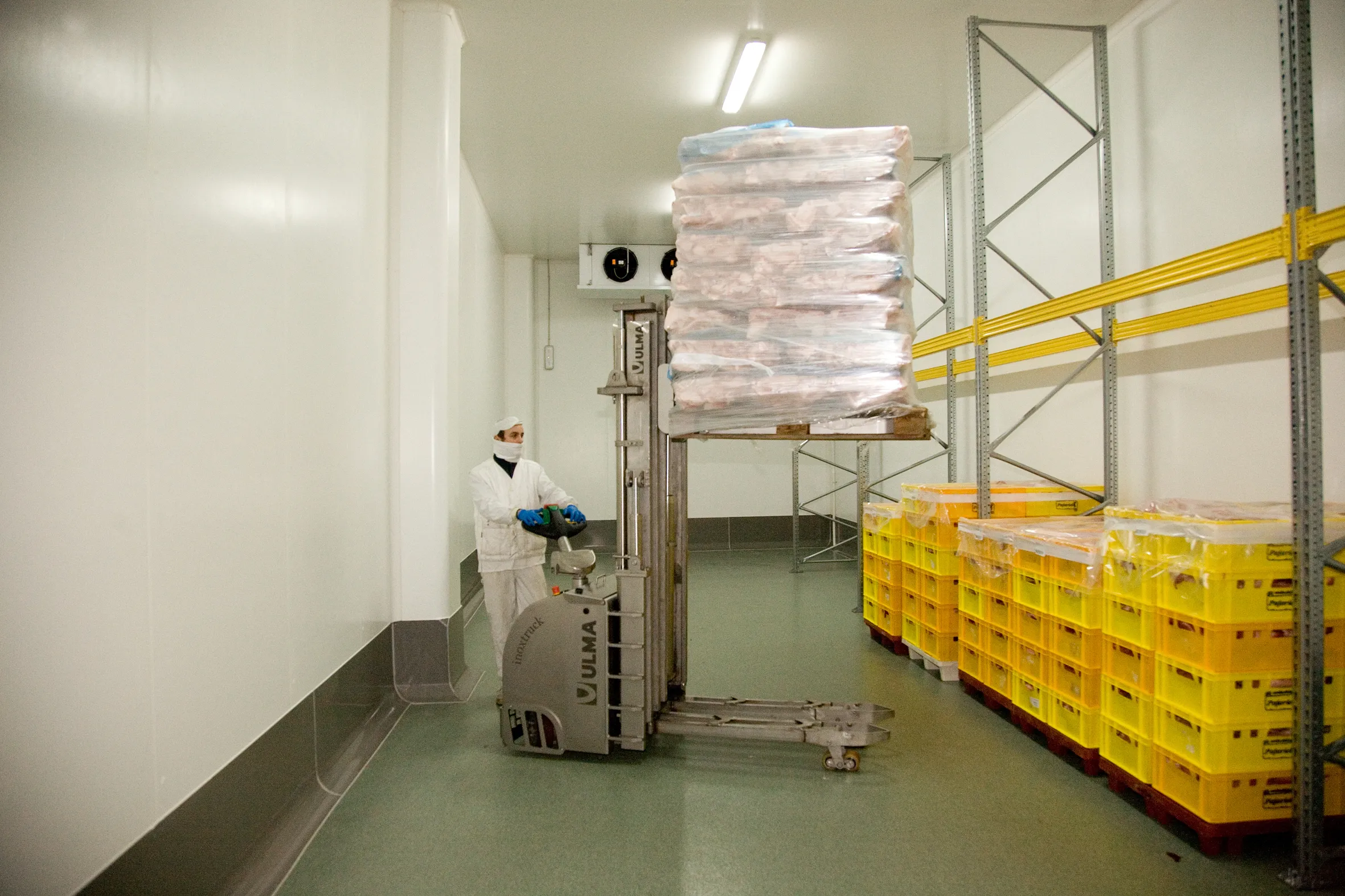

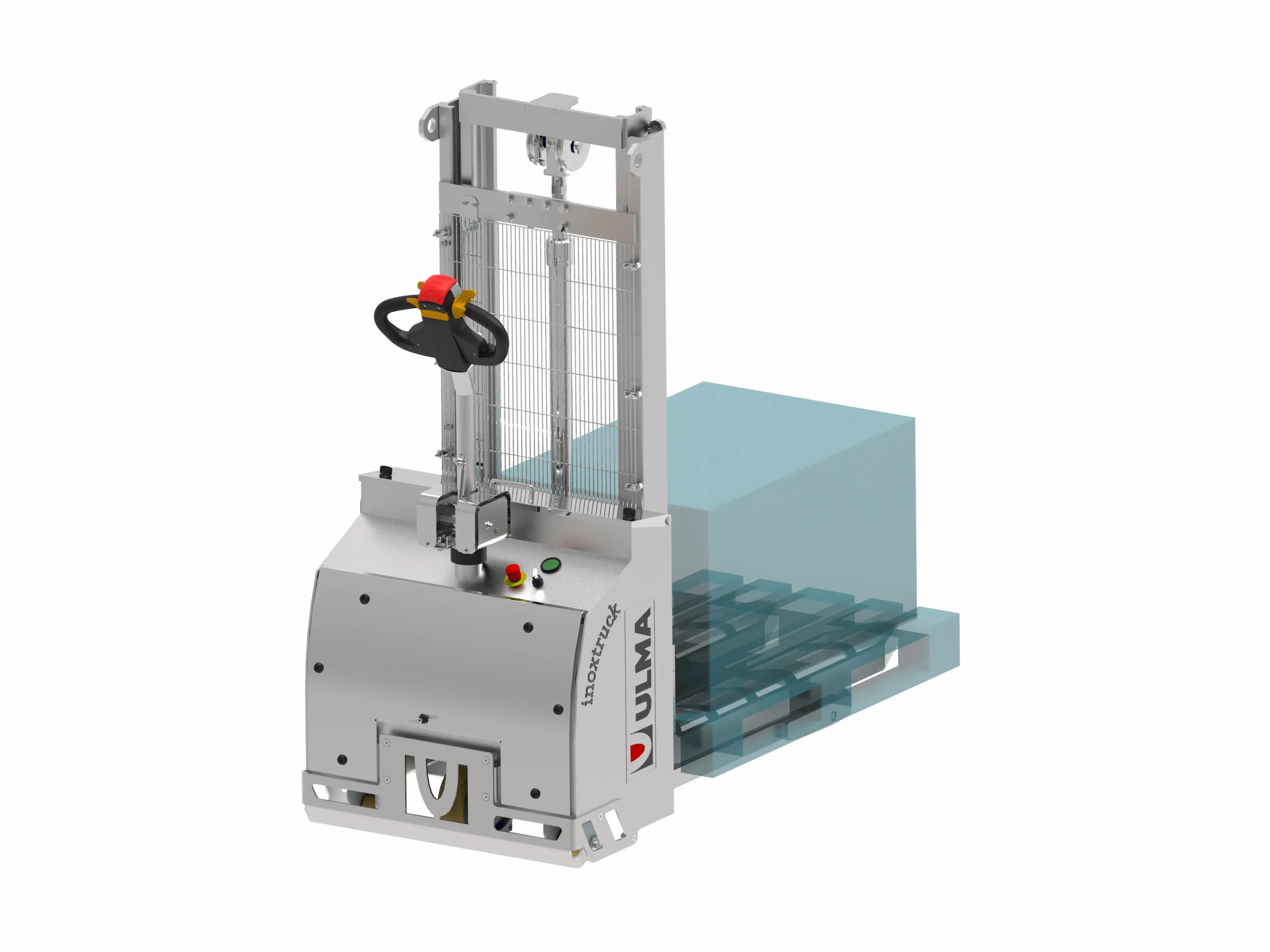

Inoxtruck EPS10MRM single-wheel electronic stacker, front viewInoxtruck EPS10MRM single-wheel electronic stacker, rear viewInoxtruck EPS10MRM single-wheel electronic stacker with load, rear viewDetail of the panoramic mast of the EPS10MRM one-wheel electronic stacker from Inoxtruck by ULMA Lifting Solutions, lifting a load.Front view of the Inoxtruck EPS10MRM one-wheel electronic stacker with loadInoxtruck EPS10MRM one-wheel electronic stacker in an industrial environment, demonstrating its use in hygienic areas.EPS10MRM single-wheel electronic stacker from Inoxtruck by ULMA Lifting Solutions in an agri-food environment, demonstrating its use in clean rooms.Inoxtruck EPS10MRM single-wheel electronic stacker, front viewInoxtruck EPS10MRM single-wheel electronic stacker, rear viewInoxtruck EPS10MRM single-wheel electronic stacker with load, rear viewDetail of the panoramic mast of the EPS10MRM one-wheel electronic stacker from Inoxtruck by ULMA Lifting Solutions, lifting a load.Front view of the Inoxtruck EPS10MRM one-wheel electronic stacker with loadInoxtruck EPS10MRM one-wheel electronic stacker in an industrial environment, demonstrating its use in hygienic areas.EPS10MRM single-wheel electronic stacker from Inoxtruck by ULMA Lifting Solutions in an agri-food environment, demonstrating its use in clean rooms.

One - Wheel Drive Electric Stacker

EPS10MRM

The Inoxtruck electronic stacker stands out for its hygienic and innovative design, providing an optimal response to the needs of stacking and storage of loads at different heights in aggressive environments due to a high degree of salinity and humidity. This 100% stainless steel equipment offers maximum residual load capacity at maximum height.

  • Monowheel drive system
  • Sealed bearings
  • No lubrication
  • Sanitisable design

Technical characteristics

Product

One - Wheel Drive Stacker

Manufacturer model

EPS10MRM

Motor
Battery

Height

3200 mm

Load

1000 kg.

Guidance system

Accompanying driver

Downloadables

EPS10MRM One-wheel Electronic Stacker Catalog.pdf
Request an offer

Key features

Innovative and sanitisable design

The completely open chassis, the curved and inclined surfaces, the watertight compartment for the lifting system, the controls with high IP65 protection, characterise the sanitisable design of this equipment, facilitating perfect drainage and quick drying.

Ergonomics and safety

This stacker is equipped with precise electronic steering and a safety valve against breakage, as well as a speed reduction function in curves and a speed limiter from a certain height.

Easy Accessibility

Quick-opening bonnet for access to all electronic components. Possibility to remove the battery from the side.

Minimal maintenance

Sealed stainless steel bearings in the load wheels and in the mast. All joints are fitted with lubrication-free bearings. The use of lifting ropes instead of chains avoids the need for lubrication and reduces the risk of microbiological contamination.

Compact chassis

The compact chassis stacker with central drive wheel system and side stabilisers (with suspension drive system as an option) is designed for applications with conventional stackers where the existing working aisles are reduced for our double-drive stacker.
